Venturi Tube

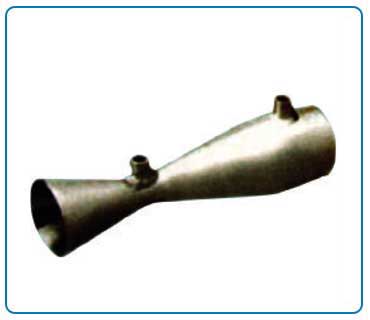

A Venturi tube has a conical convergent entry followed by a cylindrical throat &a conical divergent outlet. Manufactured to ISO 5167, BS 1042 standards, it substantially reduces permanent pressure loss. The types are made according to the manufacturing methods of the intern al surface of the entrance cone & profile at the intersection of the entrance cone & throat.

Line Size	Type A - 100 - 800mm (4" - 32" NB) Type B-50-250mm (2"-10" NB) E Type C -200-1200mm (8" - 48" NB)
Types	Long radius nozzle, ISA 1932
Type	Type A- Cast Convergent section ,Type B - Machined convergent section ,Type C - Rough Welded sheet - iron convergent section.
Accuracy	TypeA-1+0.7%,Type B-+1.0%, TypeC - + 1.5%
