DESCRIPTION

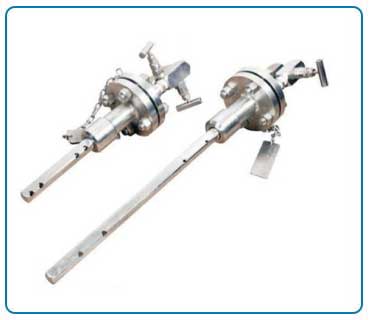

The Multiport Averaging Pitot Tube is a differential pressure device suitable to measure the flow rate in a closed conduit for general applications (it is a general purpose and affordable device). Normally used in big pipes with . low flow velocity.
| Applications | Oil & Gas / Petrochemical Industries / Power Stations |
| Type Of Elements | Standard Model ED-20/21: Diamond Shape-Manufactured by Square Bar 20x20 mm Standard Model ED-45/46: Diamond Shape-Manufactured by Square Bar 45x45 mm Special Device: Diamond Shape-Manufactured by Square Bar sized with Stress and Vibrations Analysis Results |
| Material | As per Customer's requirements / Main material References: ASME/ASTM |
| Process Connections | Threaded Coupling / Flanged Nozzle |
| Flow Calculation | Main Reference code: AS PER STANDARDS |
PERFORMANCES
- Accuracy (referred to flow * Not Applicable * Flow Meters can be coefficient): 2 to 2.5% for manufactured according to Standard Device; to be all Customer Specifications evaluated case by case for . Special Devices
- Repeatability: +/-0.15%
- Max PPL 10+15% of full scale differential pressure
CALIBRATION
- Not Applicable
NOTE
- Flow Meter can be manufactured according to all Customer Specifications
- Flow Meter can be supplied complete with all relevant accessories (valves / manifold / condensing pot / transmitter / fitting /tubing)
