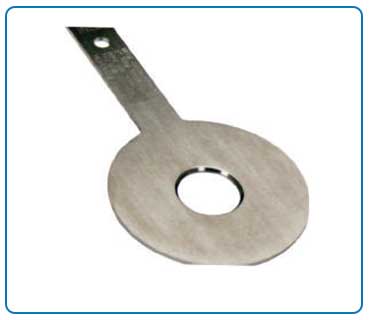

Orifice Plate

An Orifice plate is a most popular flow element. Orifice plates are precisely manufactured from the finest materia Is with close tolerance to match ISO 5167 , BS 1042 and API 2530 &AGA report 3. Mountings between flanges or carrier ring (s) are available.

Line Size	15-1500 mm ( 1/2" - 60" NB)
Type	Concentric square edge, Quarter of circle , Conical entrance, Segmental, Eccentric
Accuracy	+- 1%
Materials	AISI 316, AISI 304
